Leica RTC360 - 3D Laser Scanner
The Leica RTC360 laser scanner revolutionises 3D reality capture with unprecedented speed and efficiency. Equipped with a measuring rate of up to 2 million points per second and an advanced HDR imaging system, the RTC360 can generate detailed, coloured 3D point clouds in under two minutes.
The RTC360 also boasts automated targetless field registration and seamless, automated data transfer from site to office, significantly reducing field time and enhancing overall productivity.
Speed & Efficiency
Captures 2 million points per second, enabling rapid data collection. Completes a full scan with HDR imaging in under 2 minutes. Scan duration as low as 26 seconds.
Imaging & Accuracy
Equipped with a 36 MP camera system capturing 432 MP raw data for calibrated spherical images. Delivers 3D point accuracy of 1.9 mm at 10 m and 2.9 mm at 20 m.
Technical Specifications
Laser Class 1 (invisible, 1550 nm) for eye safety. Field of View: 360° horizontal & 300° vertical. Data storage via 256GB exchangeable USB 3.0 flash drive.
Equipment Use Cases

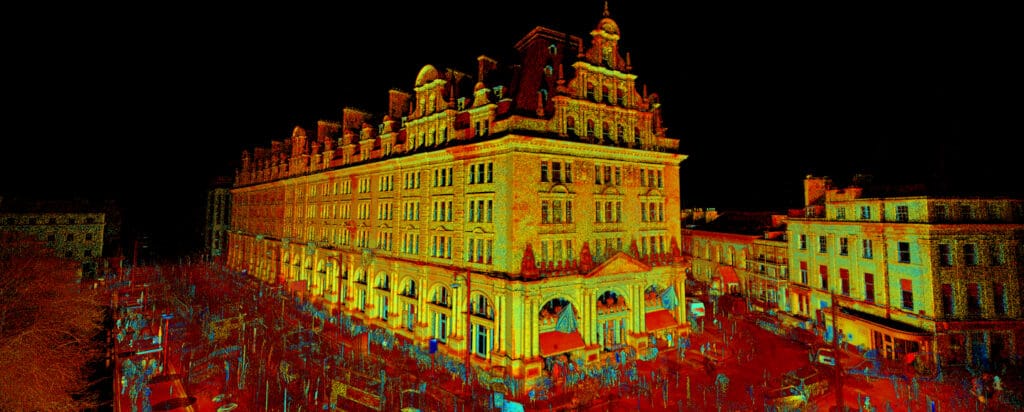

Here are some of the projects that utilised the Leica RTC360 – 3D Laser Scanner
